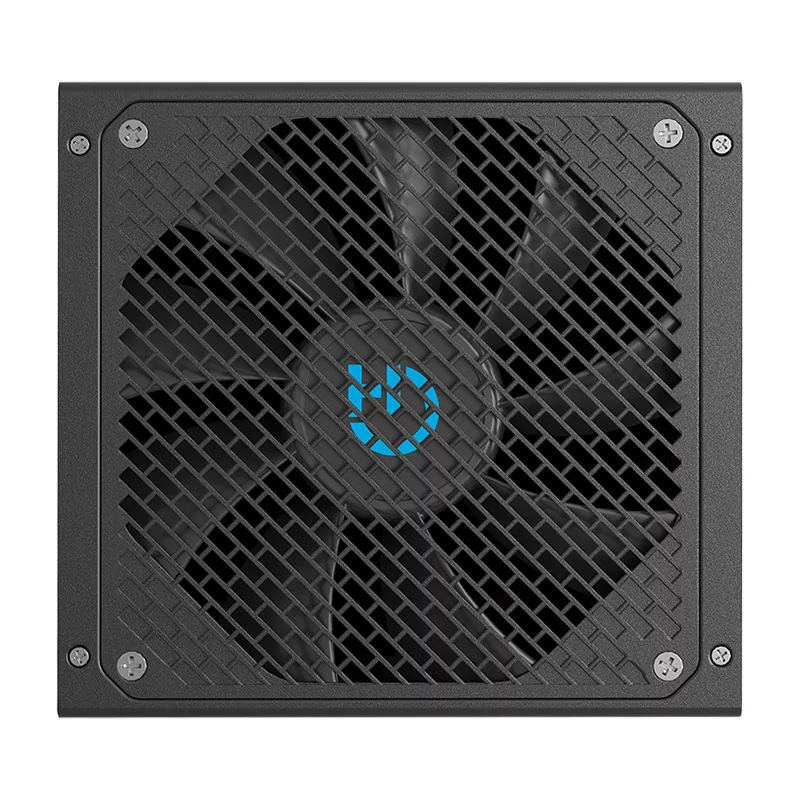

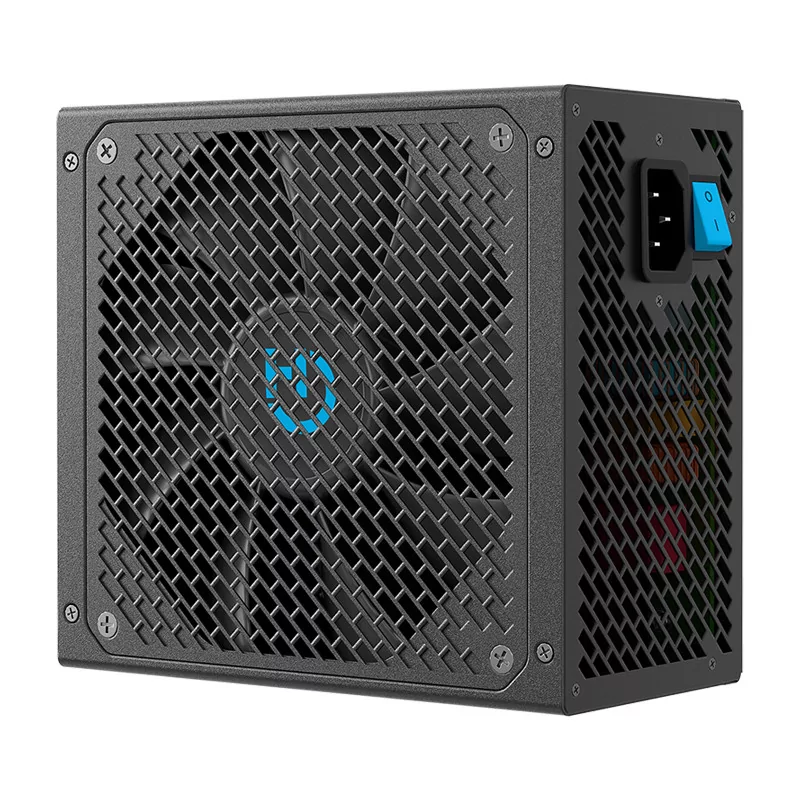

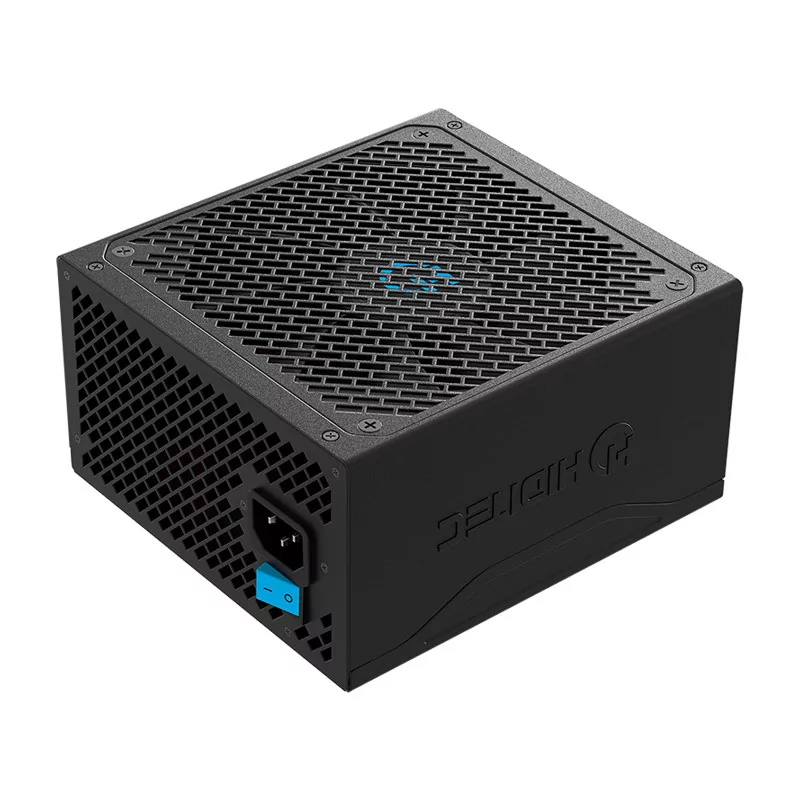

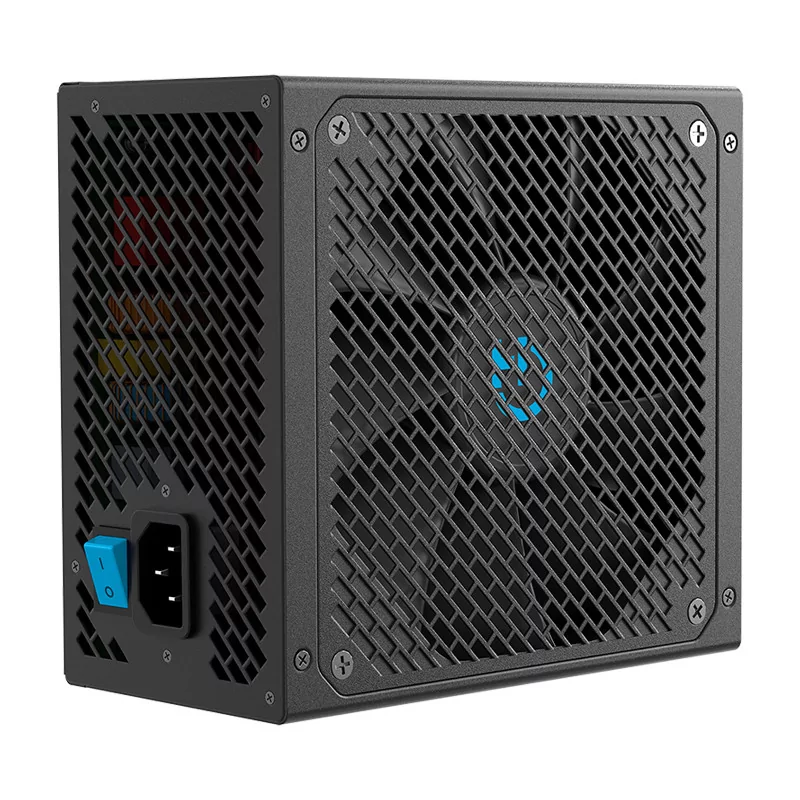

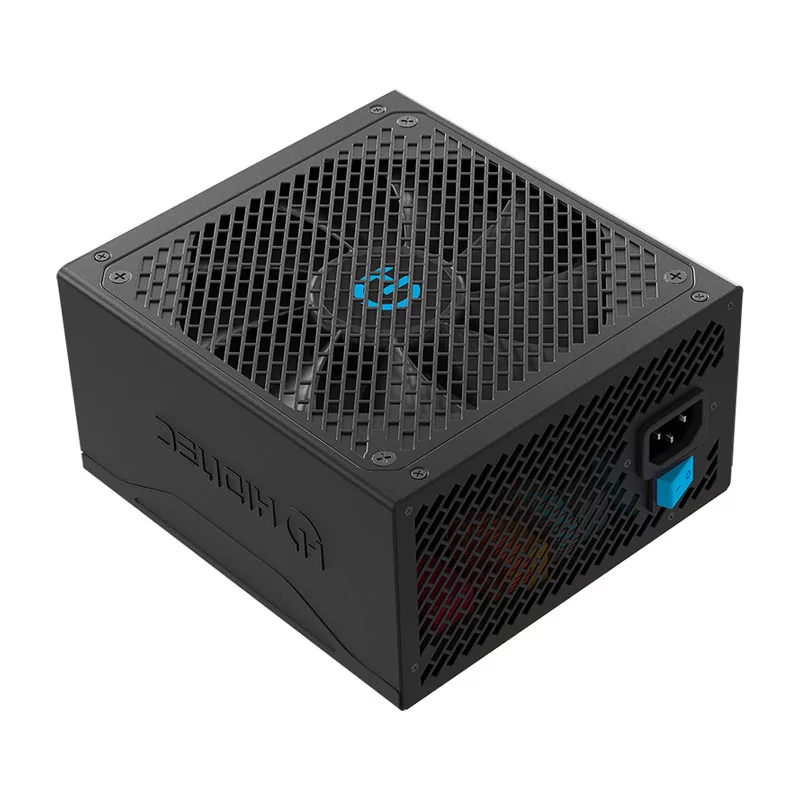

BZ550 80PLUS BRONZE
€52.95
VAT included
The BZ series has a DC/DC converter to offer stable and and high quality power and has an 80PLUS BRONZE certificate and top quality components ready to provide stable and high quality power in high performance equipment. It incorporates a 140mm ultra-quiet fan to provide greater air flow inside.
Secure connection (Website with a security certificate so you can browse safely)
Delivery policy (free shipping in 2-3 business days for Peninsular Spain and Portugal)
Return policy (30 days from the shipping date to return your purchase)
High-efficiency energy
The BZ series has an 80PLUS BRONZE certificate and top quality components ready to provide stable and high quality power in high performance equipment.
It incorporates a 140 mm ultra-quiet fan to provide greater air flow inside.
80Plus Gold Certified with Japanese 105ºC Electrolytic Capacitors
The BZ series incorporates highly durable and consistently reliable Japanese 105ºC electrolytic capacitors. Japanese capacitors minimize voltage ripple, improving durability and stability to extend lifespan.
BZ power supplies have an 80PLUS BRONZE certificate, which guarantees an efficiency of more than 85% as well as a lower consumption and greater durability of all the components.
Heat emissions will be reduced with more efficient working, allowing the fan to work at a lower speed, so the noise produced by the power supply will be virtually imperceptible.
It incorporates complete protections with OVP / UVP / OPP / SCP / SIP.
SMD Manufacturing Electronic Technology with DC/DC Converter
High-precision SMD electronic mounting technology with high-performance components offers extreme reliability of the power supply in conditions of maximum demand. SMD technology improves the durability of the power supply, ensuring reliable long-term operation.
It also incorporates advanced DC/DC conversion technology that provides stable, safe, and much more efficient energy, reducing energy consumption and ensuring precise voltage regulation, protecting your equipment components under any load condition.
It offers durability exceeding 100.000 hours of operation.

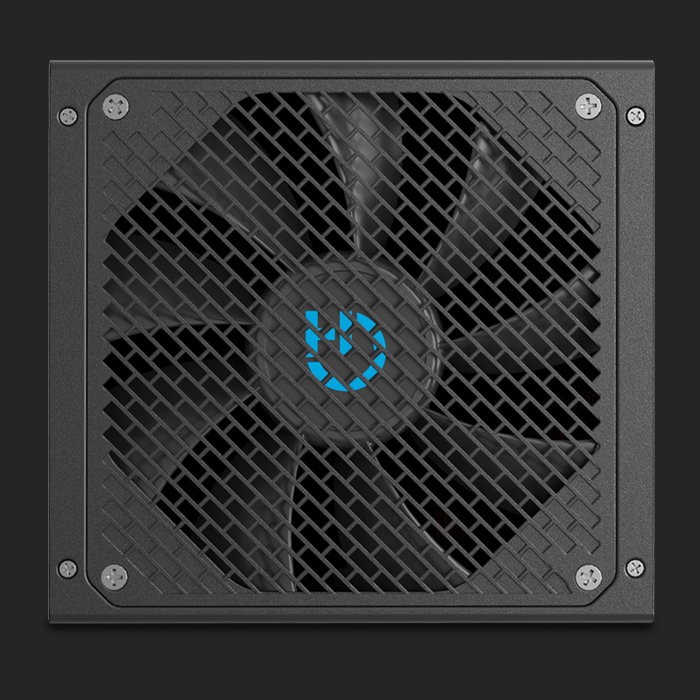

Ultra-silent 140mm fan with thermostatically regulated fluid dynamic bearings (FDB)
The ultra-silent 140mm fan with thermostatically regulated fluid dynamic bearings (FDB) significantly reduces operating noise and extends its durability.
It adjusts its operation according to the different needs of the system, running at maximum power only when required.
The 140mm fan provides more air flow running at lower revolutions, so in addition to making the noise of the fan virtually imperceptible, greater efficiency and durability will be achieved with all the components.
Dual EPS12V & Four 6+2 PCIe
The BZ series has two EPS12V lanes and four 6+2 PCIe lanes for high-performance graphics.
Extra long flat cables
Extra-long flat cables facilitate adaptation when installing in any equipment, thereby assuring more orderly installation while taking up less space and provide excellent safety and durability.

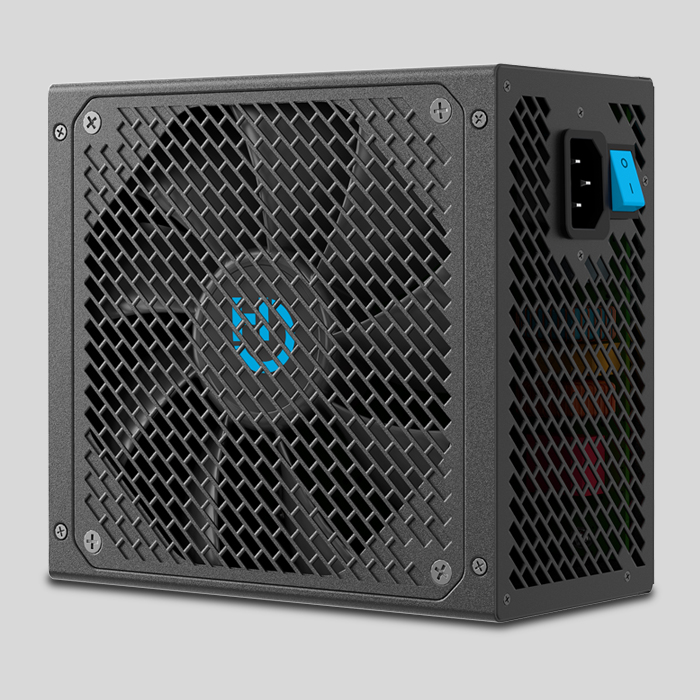

With a new exterior design and fully lacquered in black, the BZ power supplies have a more robust finish.
5 Years Extended Warranty
The BZ series offers reliability and durability backed by a 5-year warranty, supported by HIDITEC’s technical support team.
PSU010009
Data sheet
| Dimensions | 150 x 86 x 160 mm |
|---|---|
| Weight | 2200 grs |
| Voltage | 230Vac |
| Form factor | ATX |
| MTBF | 100.000 hours |
| Power | 550W |
| 80Plus certificate | Bronze |
| CircuitShield | OVP, SCP, OPP, SIP, UVP |
| 20+4 pin connector | 1 [ 1 * 600 mm ] |
| EPS +12V 4+4 pin connector | 2 [ 2 * 700 mm ] |
| FDD Connector | 1 [ 890 mm ] |
| SATA connector | 5 [ 500 mm + 3 * 130 mm ] |
| Molex connector | 2 [ 500 mm + 3 * 130 mm ] |
| 6+2Pin PCIe connector | 2 [ 1 * 600 mm + 150 mm ] |
| Type of cables | Flat |
| Technical data power supply | +12V : 45A / +3.3V : 20A / +5V : 20A / -12V : 0.5A / +5VSB : 3A |
| Fan dimensions | 140 x 140 x 25 mm |
| Certificates | CE , FCC , RoHs |
| Full modular | Not |
